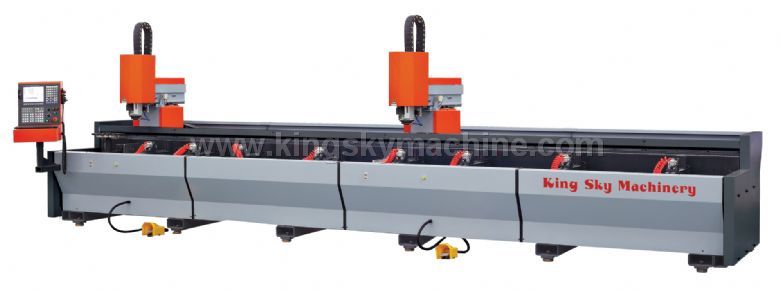

ENGLISHKS-Y3303/3303C-CNC Profile Machining Center（Italian-style)
CNC Double-head Machining Center
Product Details:
This machine has two structures for selection: Structures of German Machining center and Italy Machining Center. it's controlled by CNC three-axis linkage interpolation, realizing orderly machining for the aluminum alloy, PVC and normal light alloy and steel profile.
It's produced by one-time machining center after annealing treatment, adopts box-structure lathe bed and gantry structure girder ,as well as original imported west German ball screw, linear guide, pinion and rack and Italian "HSD" air-cooled spindle to ensure its stability, precision and efficiency, meanwhile we provide special clamps so that it can machining different profiles and improve the precision and efficiency. All the moving parts are lubricated by interval supply system and tools are cooled by cooling spray system to prolong the lifespan and improve the fineness of the workpieces; equipped with dust recycling bin, moveable feeding worktable, light curtain safety guard, it ensures safe and environmental operation.
This machine has good expansibility: It can work as three-axis machining center after installation of Automatic Tool Change and tool magazine, also work as four-axis or five -axis machining center after installation of C axis; and as CNC double-head milling machine and CNC double-head machining center after installation of Z-axis and Y-axis CNC machine head.
TECHNICAL PARAMETER
|
Model and standard parameter |
KS-Y3303/3303C |
KS-Y3304/3304C |
KS-Y3305/3305C |
KS-Y3306/3306C | |||
|
Maximum machining length: |
2900mm |
4000mm |
5000mm |
6000mm | |||
|
Maximum machining width: |
300mm | ||||||
|
Maximum machining height: |
300mm | ||||||
|
Power of spindle: |
6kW/7.5kW(Tool Changing) | ||||||
|
Tool shank: |
ISO 30 | ||||||
|
Spindle RPM: |
24000rpm | ||||||
|
X-axis speed: |
60m/min | ||||||
|
Y-axis speed |
40m/min | ||||||
|
Z-axis speed |
30m/min | ||||||
|
Reposition accuracy: |
±0.05mm/m | ||||||
|
Precision of cutting length |
±0.1mm/m | ||||||
|
Spindle and tool change system |
Air cooling | ||||||
|
X-axis drive |
German Dual gear rack and pinion and linear guide | ||||||
|
Y / Z axis drive |
Japan ball screw and linear guide | ||||||
|
Operating system |
WINDOWS XP，GERMAN KINGSKY profiles professional software ( read PLT or DXF to achieve processing automatically) | ||||||
|
Tool detection |
Automatic measurement of tool length/ automatic tool sensor | ||||||
|
Dimension (L × W × H) |
3970×2000×2050mm |
4970×2000×2050mm |
5970×2000×2050mm |
6970×2000×2050mm | |||
|
Optional functions and devices | |||||||
|
Installation of rotary C-axis: |
The workpiece can realize machining of three sides for one-time clamping, -90 degrees to 90 degrees, the minimum setting angle: 0.5 degree, accuracy ± 0.1 degree | ||||||
|
Installation of automatic tool change and tool magazine |
Time of tool change: 5~10s
Capacity of tool magazine: 8+1 | ||||||
|
Installation of Z-axis and Y-axis CNC platform |
Can realize synchronized milling operation in the same trajectory along Z-axis and Y-axis of the two machine heads | ||||||
|
Security and protective devices |
Photoelectric protection in operation, milling scrap recycling device, movable loading workbench, assembled with sound-absorbing protective panel | ||||||
|
Clamping work platform (10 sets) |
3set/4set/6set | ||||||
|
Tool accessories |
ISO30 tool bit/ Clamps / Tool | ||||||
|
Bar code scanners and supporting software |
For mass production, the profile data are automatically read, automatically implement the same machining procedure | ||||||
|
Machine weight |
1500kg |
2000kg |
2500kg |
3000kg | |||
