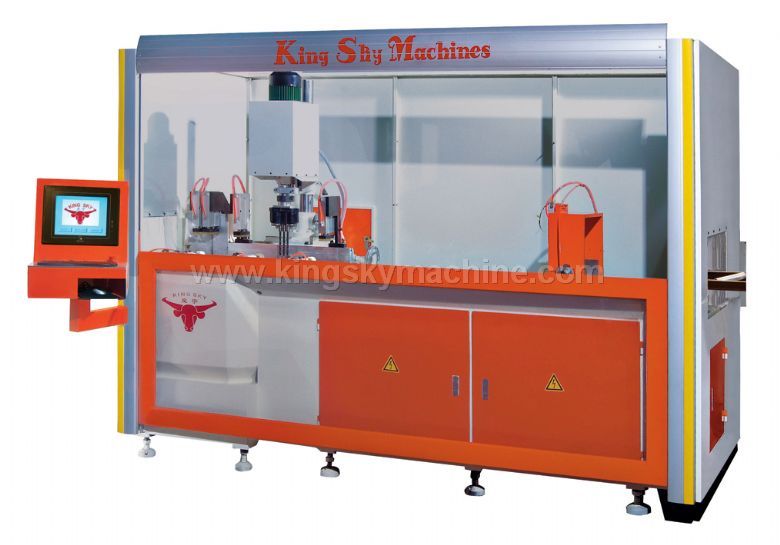

The machine is exclusively researched and developed by our company with patented technology by adopting the internationally advanced mechanical technology and concept, in combination with our company’s professional development results. Through sawing, automatic feeding, drilling three-axis digital control, an automated assembly-line method is adopted to realize orderly machining of multiple drilling and cutting of any length of metal profile for many times. This machine is particularly applicable to the machining enterprises engaged in industrial aluminum fittings, aluminum curtain wall accessories, doors and windows hardware fittings, building hardware fittings, door-control hardware accessories and home hardware accessories, and is the latest equipment for one-time completion of drilling, counter boring, cutting and other complex machining processes for a single workpiece for many times.



The whole machine body is manufactured for one-time in the machining center after annealing treatment. Equipped with German hard alloy saw blades, imported guide rail, lead screw; and installed with hydropneumatic damper stepless speed regulation, automatic oil spray (mist) lubrication cooling device, this machine is firm and durable with precise positioning, operational sensitivity and superior stability. With the control software jointly developed with international famous enterprises, it can realize automatic detection, diagnosis, remote maintenance, upgrading functions, circuit stability, wide applicability of operating environments; clear interface, simple operation, high production efficiency and low labor intensity (one person can take charge of 2-3 sets); high degree of automation (skilled operation after general training). The installed scrap suction device is environment-friendly and healthy.



This machine can be installed with multiple drilling heads as required by the clients. Through program control, it can realize batch or orderly drilling of any work position of the workpieces.



Model and Parameter	KS-J8S117Z	KS-J8S117X	KS-J8S171Z	KS-J8S171X
Cutting angle	Any angle between ±22.5°double ends		90°double ends,45°single end
Optimized material cutting function	One time or many times auto feeding in same or different length as per programme
Drilling /tapping head	Drilling head	Driling/tapping head	Drilling head	Driling/tapping head
Multiple shaft drilling device(3-axis adjustable)	1 original Taiwan made porous device
Length of one-time automatic feeding	5~1200mm/ ±0.05mm
Precision of cutting length	±0.1mm
Feeding Motor Power and Speed	750W/1-30m/min
Drilling head power / speed	Taiwan 1.5kW/2800 rpm
Cutting motor power / speed	2.2kW /2840 rpm
Cutting angle/speed	Feeding 0-3m/min   Returning 2-3m/min
Repositioning accuracy	±0.02mm/m
Maximum travel of driving head	100-150mm
Cutting width x cutting height	230x150mm
Specification of driller	ISO16 Ф3-15
Specification of blade	Ф500×Ф30×120T
Minimum distance of single group of holes (porous device)	13.5~22mm
Drilling diameter	Ф3-Ф15mm
Working air pressure / working power	0.6-0.8MPa/380V Three-phase 50Hz
Dimension (L × W × H)	5800×2000×1500 mm /2800×1280×2000 mm
Optional functions and devices
Driling/tapping function	By adding many different drilling heads, it can realize drill or tap single or multi holes
Multiple shaft drilling device	Can be customized from Taiwan factory		Spare tools：Customized forming drill bits, German saw blades.
Dust collector	Installation of security light curtain
