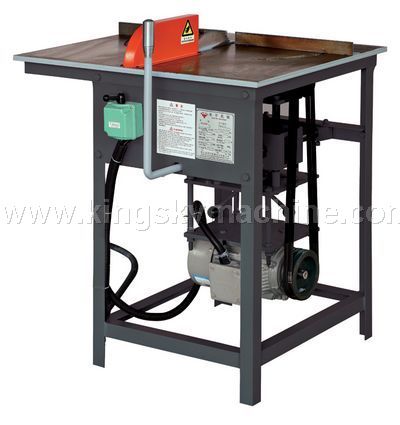

ENGLISHKS-J103-Multi-angle Manual Saw
It's mainly used for cutting aluminum alloy profile of doors and windows, profile of curtain walls, and PVC; automatic oil spray lubrication cooling device, it can realize good surface finish and high precision; hydrau-pneumatic damper stepless speed regulation is adopted for stable feeding of saw blade.
TECHNICAL PARAMETER
|
Models and parameters |
KS-J103 Multi-angle Manual Saw |
|
Feeding mode/speed of saw blade |
Manually push |
|
Material-pressing device |
Manual control |
|
Standard material bracket and configuration bracket |
No |
|
Rotating speed of main motor |
2840r/min |
|
Power of main motor |
1.5kW |
|
Blade size |
Ф300×Ф25.4×80T |
|
Working air pressure /working voltage |
No |
|
Power supply |
Standard configuration: three-phase 380V 50HZ ,The non-standard can be customized |
|
Dimension (L × W × H) |
820x980x1020mm |
|
Machine weight |
180Kg |
|
Cutting range |
90x 125mm |
|
Optional device |
Clamps, positioning templates, configuration bracket, spare tools, Digital display configuration bracket. |
