Developed by German Mature structure, it mainly used for milling different through holes for aluminum alloy materials of curtain walls and windows as per hole mould in 1:1 ratio. With casting technique, the worktable is very stable, durable and metabolic; the special designed fast/slow feeding device could improve the quality of machining finish and prolong the lifespan of blades.



Semi-automatic Copy Router has adjustable postpositional horizontal tri-head drill, solving the problem of inconvenient operation and unadjustalbe hole distance, it also has large machining size and high precision, furnished with adjustable tri-head drill, which could drill holes on the multipoint lock work piece and the milling & cutting would be finished within one time machining, so it is more suitable for drilling multipoint lock, milling and cutting on the adiabatic profile material.

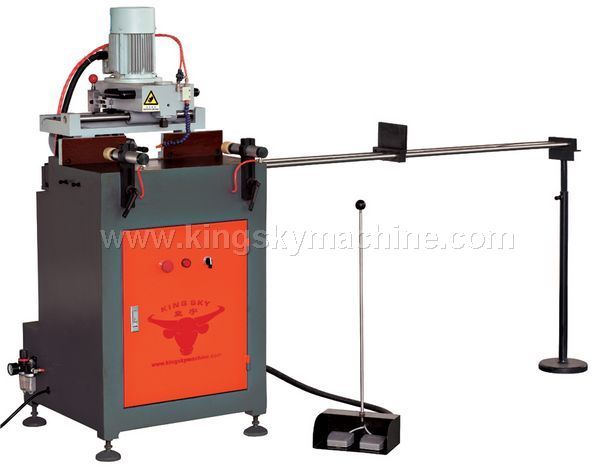

Model and parameter	Semi-automatic Drilling and Copy Router KS-XZ152
Worktable Dimension	620X260 mm
Maximum working travel of vertical milling head from left to right	260mm
Maximum working travel of vertical milling head from front to rear	120mm
Motor power	1.1kW X2
Rotating speed of vertical milling tool	12000r/min
Milling tool size  (Common use)	φ8
Milling tool size   Useable	φ3/φ5
Minimum distance of single hole (porous device)	Made in Taiwan 13.5-22mm
Diameter of drilling hole (porous device)	φ3-φ15mm
Maximum working travel of pressing cylinder	50mm
Working voltage	380VAC 50Hz
Working air pressure	0.6-0.8MPa
Overall Dimension	2630/630X1100X1440MM
Tool feeding mode	Pneumatic
Machine Weight	200kg
Optional function and device	Clamps, positioning templates, and retrofitted rack
