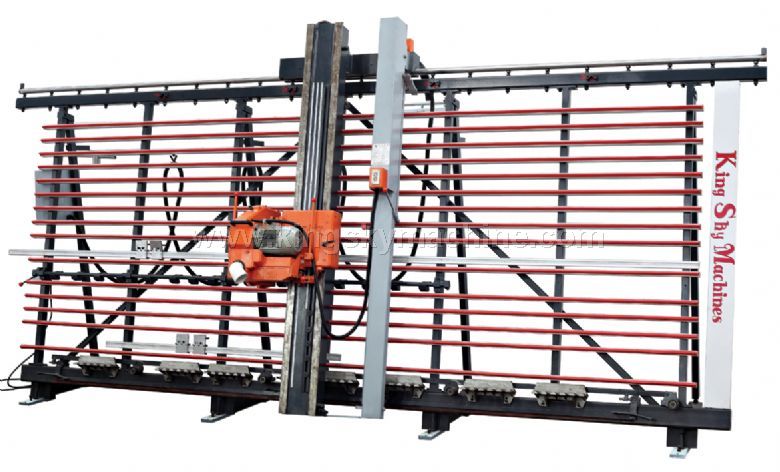

ENGLISHKS-K1604/K1304-Aluminum Composite Panel Grooving and Cutting Machine
The machine is developed by adopting Italian classic structure technology and idea of profile processing in combination with the professional outcome of our company. The machine is mainly used for the grooving and cutting of ACP for curtain wall and pure aluminum plate,PVC and fireproofing plate.
1. Adopting imported hard alloy saw blades ensures high stability in high-speed running, efficiency and long life.
2. Grooving depth is controlled by special eccentric bearing structure, and adjustment can be done at random between 0 to 8mm; the adjustment is
easy and the precision is high. The grooving depth deviation ≤0.15mm.
3. The cutting head can realize the horizontal and vertical cutting or grooving. It’s of easy adjusting, accurate positioning, flexible operating and stability.
TECHNICAL PARAMETER
|
KS-K1604
Aluminum Composite Panel Grooving and Cutting Machine |
KS-K1304
Aluminum Composite Panel Grooving and Cutting Machine | |
|
Length of grooving/cutting |
4100mm |
4100mm |
|
Height of grooving/cutting |
1600mm |
1300mm |
|
Deviation of rectangular diagonal formed by two horizontal grooving and two vertical grooving |
>2000mm-≤2.5mm |
>2000mm-≤2.5mm |
|
Grooving depth |
0-8mm |
0-8mm |
|
Specification of grooving blade Ⅰ |
Φ250XΦ30X16X12T(90°) |
Φ250XΦ30X16X12T(90°) |
|
Specification of grooving bladeⅡ |
Φ250XΦ30X16X12T(135°) |
Φ250XΦ30X16X12T(135°) |
|
Specification of cut-off blade |
Φ250XΦ30X3.2X80T |
Φ250XΦ30X3.2X80T |
|
Working voltage |
380VAC 50HZ | |
|
Motor power |
2.2kW |
2.2kW |
|
Spindle speed |
5400RPM |
5400RPM |
|
5400x1500x2600mm |
5400x1500x2200mm | |
|
Weight of machine |
1500Kg |
1200Kg |
|
Optional device, function |
Dust collector, spare tool | |
