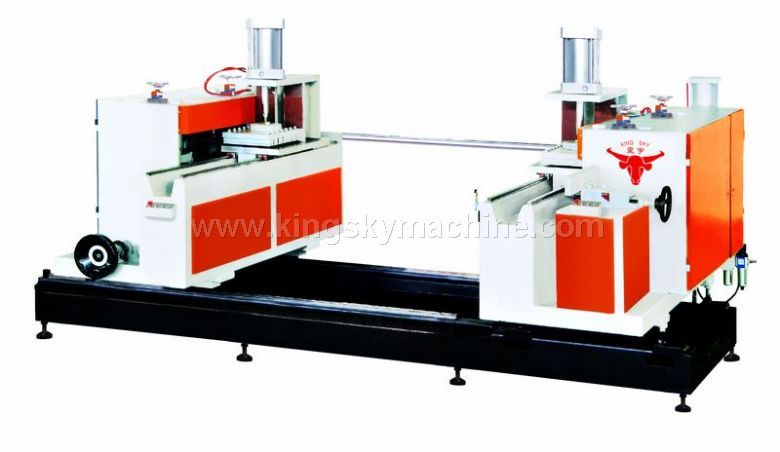

ENGLISHKS-2X611-Double Head Six-cutter curtain Wall End Milling Machine
Developed by German Mature structure, it’s suitable for milling tenons for different kinds of profiles; it mills the tenons from two ends of materials simultaneously. And it’s driven by imported linear guide to assure the stable, precise and high efficient processing.
TECHNICAL PARAMETER
|
Model and parameters |
KS-2X611
Double Head Six-cutter Curtain Wall End Milling Machine |
|
Control system |
South Korea LG |
|
Processing range |
550~1600mm |
|
Precision |
≤0.05mm |
|
Profile Qty. of one-time cutting |
6~8 pieces |
|
Milling Range(W×H) |
80×80mm |
|
Power of motor |
4×2.2kw |
|
Blade Size |
φ200×φ27×100T |
|
Dimension（L×W×H） |
3000×2200×1600mm |
