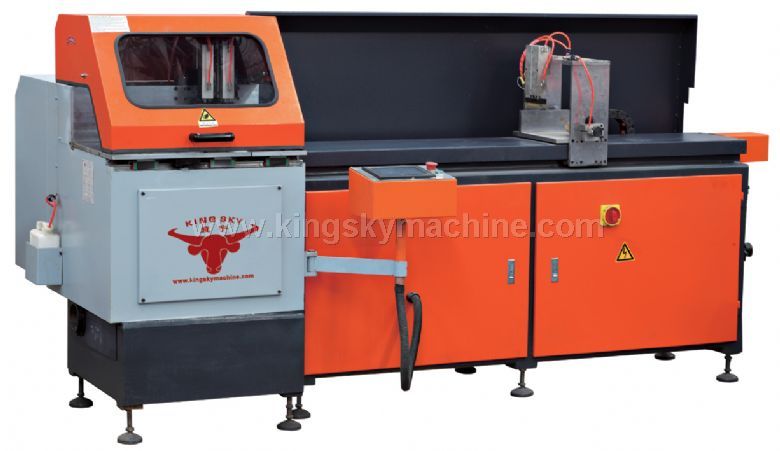

ENGLISHKS-J8171X-High-precision Auto-Feeding Saw
This high-accurate auto-feeding sawing machine is suitable for cutting many kinds of industrial aluminum profile. The saw is driven by high-accurate screw balls and imported linear guiding rail, and the auto-feeding function is realized by Japanese imported Servo motor. The worktable will separate the finished material automatically after finishing the cutting jobs and it won’t touch the edges of cut-off material on the cutting table, which ensures a very high quality cutting without burrs and sawing curves on the material.
By adopting arm-waving type feeding, the golden cutting angle formed by the tool and profile has unmatched advantages for its stability and durability, smoothness and accuracy of cutting than other similar machines of different structure. the main parts are casted with seamless connection,the repositioning accuracy is ±0.05m.
TECHNICAL PARAMETER
|
Model and parameter |
KS-J8171X High-precision Auto-Feeding Saw |
|
Cutting angle |
90° |
|
Processing range ( H×W) |
150×230mm |
|
Maximum cutting length of one-time feeding |
5-1200mm |
|
automatic feeding mode |
CNC servo feeding |
|
Feeding and cutting mode |
Can set to get repeated equal length or different length feeding |
|
Precision of angle |
±0.05° |
|
Precision of cutting length |
±0.05mm |
|
Rotating speed of main motor |
2840r/min |
|
Power of main motor |
Standard: 2.2kW/3.0kW Other types of motors can be selected |
|
Saw feeding \ returning speed |
Feed 0-3m/min Return2-3m/min |
|
Saw blade size |
Ф500×Ф30×4.1/4.4×120T |
|
Power supply |
380VAC 50Hz, no-standard can supply as discussed |
|
Dimension (L × W × H) mm |
5700x1300x1350mm |
|
Weight of machine |
1500Kg |
|
Optional device |
Clamp, positioning templates, Dust collector and spare tool and material bracket |
Remarks: More functions can be gained by choose the feeding mode and cutting head working mode.
