Adopting mature German design concept and application of the latest operation requirements and practices, it is developed for cutting aluminum profile,  PVC profile, industrial material, arc material, profile for doors and windows and curtain walls, it can also be used for angle cutting. Equipped with German20’’ hard alloy saw blades, imported guide rail, high linear velocity, automatic oil spray lubrication cooling device and hydrau-pneumatic damper stepless speed regulation, this machine can realize good surface finish, high precision and stable feeding with high strength and excellent stability.

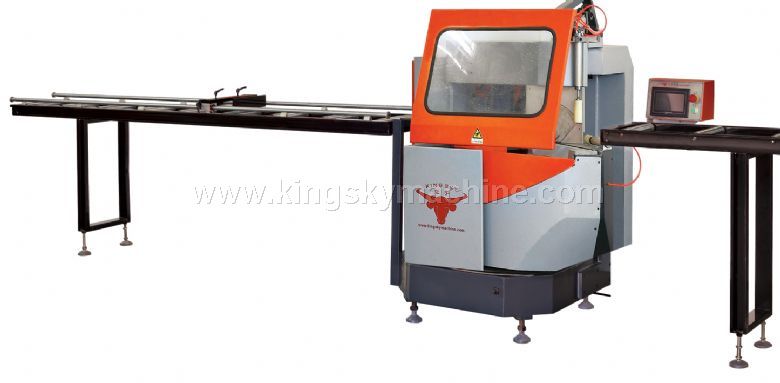

Multi-angle single-head saw is our solely developed machine, it can be arbitrarily rotated and positioned at any angle between 0° -135°, and it can also finish end milling and cutting in longitudinal direction of the profile with its fixed-height longitudinal cutting feature. This machine has a large cutting range, and can meet cutting at various angles. With imported integrated PLC system, this machine can realize simple operation with the functions of automatic detection and diagnosis and the features of high circuit stability, wide applicability of operating environment, remote maintenance, upgrading. The overall indicator of the whole machine has reached the international first class standard.



Models and parameters	KS-J172D Digital display Rotation Swing Compound Angle	KS-J172S CNC Rotation Swing Compound Angle
Scope of cutting angle	22.5°- 135°
Angle control mode	45°-90°Digital display, CNC
Processing range ( H×W)	140×300mm
Function of height-fixed vertical cutting	NO
Cutting accuracy of length	±0.1mm
Cutting accuracy of angle	±0.05°
Blade size	Ф550×Ф30×120T
Saw feeding \ returning speed	Feeding 0-3m/min   Returning 2-3m/min
Rotating speed of main motor	2840r/min
Power of main motor	2.2kW/3.0kW
Working air pressure/voltage	0.6-0.8MPa/380V Three-phase 50Hz
Dimension (L × W × H)	6900×1880×1900 mm
Machine weight	900kg
Optional device	Clamps, positioning templates, configuration bracket, Dust collector, spare tools, Digital display and CNC configuration bracket.
