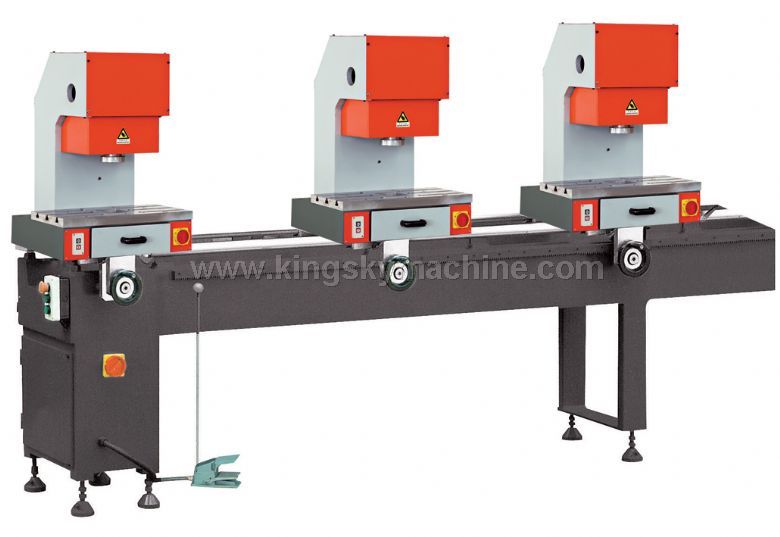

ENGLISHKS-3P2108-Three-cylinder Fast Hydraulic Punching Machine
Three-cylinder fast hydraulic punching machine is developed and designed by adopting mature Japanese technology which mainly used together with single mould and combination mould of aluminum alloy door and window series to finish the punching processing of all the holes and notches of various corresponding common profile and insulation profile, especially the solar energy applied products. The worktable is large and it is quick , convenient , safe and reliable to replace the mould.
TECHNICAL PARAMETER
|
Model and parameters |
KS-3P2108
Three-cylinder Fast Hydraulic Punching Machine |
|
Number of hydraulic oil cylinder |
3PCS |
|
Maximum punching stroke |
55mm |
|
Diameter of oil cylinder |
140mm |
|
Maximum height of mould |
260mm |
|
Capacity of oil tank |
130L |
|
Power of electric motor |
5.5KW |
|
Maximum punching shear force |
3 X 12000kg |
|
Rated pressure of hydraulic oil pump |
16Mpa |
|
Work voltage |
Tri-phase 380VAC/50HZ |
|
Dimension（L×W×H） |
1200×760×1500 mm |
|
Weight of machine |
1200kg |
